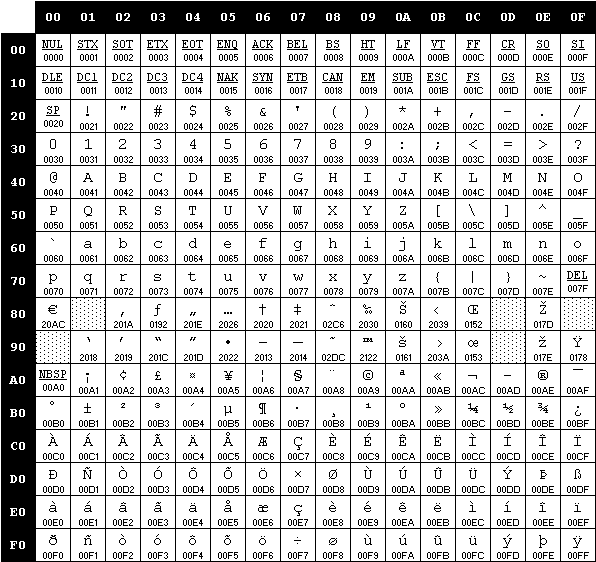

Zeichensatz 1252 Latin 1 für deutsche Textdarstellung und für Keyboard
0x00 bis 0x7F Standartzeichensatz
0xA0 bis 0xFF Landesabhängiger Zeichensatz
meine Empfehlung geht nur wenn Position vom Zeichensatz im hRam bekannt ist 0x80 bis 0x9FF reserviert für eigene Zeichen (frei verfügbar z.B. eigenes Logo)
Achtung der Zeichensatz ist Abhängig von dem Zeichensatz des Systems wo die Quelltexte erstellt wurden.
Zeichensatz 1252 für 8x12 Textanzeigen erweitert um "äÄöÖüÜߧ°²³µ" ' 8 x 12 font - characters 0..255 ' ' Each long holds four scan lines of a single character. The longs are arranged into ' groups of 256 which represent all characters (0..255). There are three groups which ' each contain a vertical third of all characters. They are ordered top, middle, and ' bottom. ' Bit 8 7 6 5 4 3 2 1 0 in der Pixelfolge von links nach rechts font long ' 0 1 2 3 4 5 6 7 long $0C080000, $30100000, $7E3C1800, $18181800, $81423C00, $99423C00, $8181FF00, $E7C3FF00 '0x00 Zeile 4, 3, 2, 1 long $1E0E0602, $1C000000, $00000000, $00000000, $18181818, $18181818, $00000000, $18181818 '0x08 long $00000000, $18181818, $18181818, $18181818, $18181818, $00FFFF00, $CC993366, $66666666 '0x10 long $AA55AA55, $0F0F0F0F, $0F0F0F0F, $0F0F0F0F, $0F0F0F0F, $00000000, $00000000, $00000000 '0x18 long $00000000, $3C3C1800, $66666600, $7F363600, $667C1818, $46000000, $1B1B0E00, $1C181800 '0x20 long $0C183000, $180C0600, $66000000, $18000000, $00000000, $00000000, $00000000, $60400000 '0x28 long $73633E00, $1E181000, $66663C00, $60663C00, $3C383000, $06067E00, $060C3800, $63637F00 '0x30 long $66663C00, $66663C00, $1C000000, $00000000, $18306000, $00000000, $180C0600, $60663C00 '0x38 long $63673E00, $66663C00, $66663F00, $63663C00, $66361F00, $06467F00, $06467F00, $63663C00 '0x40 long $63636300, $18183C00, $30307800, $36666700, $06060F00, $7F776300, $67636300, $63361C00 '0x48 long $66663F00, $63361C00, $66663F00, $66663C00, $185A7E00, $66666600, $66666600, $63636300 '0x50 long $66666600, $66666600, $31637F00, $0C0C3C00, $03010000, $30303C00, $361C0800, $00000000 '0x58 long $0C000000, $00000000, $06060700, $00000000, $30303800, $00000000, $0C6C3800, $00000000 '0x60 long $06060700, $00181800, $00606000, $06060700, $18181E00, $00000000, $00000000, $00000000 '0x68 long $00000000, $00000000, $00000000, $00000000, $0C080000, $00000000, $00000000, $00000000 '0x70 long $00000000, $00000000, $00000000, $18187000, $18181800, $18180E00, $73DBCE00, $18180000 '0x78 ' 0 1 2 3 4 5 6 7 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x80 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x88 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x90 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x98 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $06667C00 '0xA0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xA8 long $12120C00, $00000000, $10120C00, $08121E00, $00000000, $26000000, $00000000, $00000000 '0xB0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xB8 long $00000000, $00000000, $00000000, $00000000, $3C006600, $00000000, $00000000, $00000000 '0xC0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xC8 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $1C006600, $00000000 '0xD0 long $00000000, $00000000, $00000000, $00000000, $66006600, $00000000, $00000000, $66663C00 '0xD8 long $00000000, $00000000, $00000000, $00000000, $00333300, $00000000, $00000000, $00000000 '0xE0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xE8 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00666600, $00000000 '0xF0 long $00000000, $00000000, $00000000, $00000000, $33330000, $00000000, $00000000, $00000000 '0xF8 ' 0 1 2 3 4 5 6 7 long $080C7E7E, $10307E7E, $18181818, $7E181818, $81818181, $99BDBDBD, $81818181, $E7BD99BD '0x00 Zeile 8, 7, 6, 5 long $1E3E7E3E, $1C3E3E3E, $30F0C000, $0C0F0300, $00C0F030, $00030F0C, $00FFFF00, $18181818 '0x08 long $18FFFF00, $00FFFF18, $18F8F818, $181F1F18, $18FFFF18, $00FFFF00, $CC993366, $66666666 '0x10 long $AA55AA55, $FFFF0F0F, $F0F00F0F, $0F0F0F0F, $00000F0F, $FFFF0000, $F0F00000, $0F0F0000 '0x18 long $00000000, $0018183C, $00000066, $7F363636, $66603C06, $0C183066, $337B5B0E, $0000000C '0x20 long $0C060606, $18303030, $663CFF3C, $18187E18, $00000000, $00007E00, $00000000, $060C1830 '0x28 long $676F6B7B, $18181818, $0C183060, $60603860, $307F3336, $60603E06, $66663E06, $0C183060 '0x30 long $66763C6E, $60607C66, $1C00001C, $00001C1C, $180C060C, $007E007E, $18306030, $00181830 '0x38 long $033B7B7B, $66667E66, $66663E66, $63030303, $66666666, $06263E26, $06263E26, $63730303 '0x40 long $63637F63, $18181818, $33333030, $36361E36, $66460606, $63636B7F, $737B7F6F, $63636363 '0x48 long $06063E66, $7B636363, $66363E66, $66301C06, $18181818, $66666666, $66666666, $366B6B63 '0x50 long $663C183C, $18183C66, $43060C18, $0C0C0C0C, $30180C06, $30303030, $00000063, $00000000 '0x58 long $0030381C, $333E301E, $6666663E, $0606663C, $3333333E, $067E663C, $0C0C3E0C, $3333336E '0x60 long $66666E36, $1818181C, $60606070, $361E3666, $18181818, $6B6B6B3F, $6666663E, $6666663C '0x68 long $6666663B, $3333336E, $066E7637, $300C663C, $0C0C0C7E, $33333333, $66666666, $6B6B6363 '0x70 long $1C1C3663, $66666666, $0C30627E, $180C060C, $18181818, $18306030, $00000000, $0018187E '0x78 ' 0 1 2 3 4 5 6 7 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x80 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x88 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x90 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x98 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $603C663C '0xA0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xA8 long $0000000C, $00000000, $001E0408, $000C1210, $00000000, $5C242424, $00000000, $00000000 '0xB0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xB8 long $00000000, $00000000, $00000000, $00000000, $667E6666, $00000000, $00000000, $00000000 '0xC0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xC8 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $63636336, $00000000 '0xD0 long $00000000, $00000000, $00000000, $00000000, $66666666, $00000000, $00000000, $66663666 '0xD8 long $00000000, $00000000, $00000000, $00000000, $333E301E, $00000000, $00000000, $00000000 '0xE0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xE8 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $6666663C, $00000000 '0xF0 long $00000000, $00000000, $00000000, $00000000, $33333300, $00000000, $00000000, $00000000 '0xF8 ' 0 1 2 3 4 5 6 7 long $00000000, $00000000, $00001818, $0000183C, $00003C42, $00003C42, $0000FF81, $0000FFC3 '0x00 Zeile 12, 11, 10, 9 long $0002060E, $00000000, $18181818, $18181818, $00000000, $00000000, $00000000, $18181818 '0x08 long $18181818, $00000000, $18181818, $18181818, $18181818, $00FFFF00, $CC993366, $66666666 '0x10 long $AA55AA55, $FFFFFFFF, $F0F0F0F0, $0F0F0F0F, $00000000, $FFFFFFFF, $F0F0F0F0, $0F0F0F0F '0x18 long $00000000, $00001818, $00000000, $00003636, $0018183E, $00006266, $00006E3B, $00000000 '0x20 long $00003018, $0000060C, $00000000, $00000000, $0C181C1C, $00000000, $00001C1C, $00000103 '0x28 long $00003E63, $00007E18, $00007E66, $00003C66, $00007830, $00003C66, $00003C66, $00000C0C '0x30 long $00003C66, $00001C30, $0000001C, $0C181C1C, $00006030, $00000000, $0000060C, $00001818 '0x38 long $00003E07, $00006666, $00003F66, $00003C66, $00001F36, $00007F46, $00000F06, $00007C66 '0x40 long $00006363, $00003C18, $00001E33, $00006766, $00007F66, $00006363, $00006363, $00001C36 '0x48 long $00000F06, $00603C36, $00006766, $00003C66, $00003C18, $00003C66, $0000183C, $00003636 '0x50 long $00006666, $00003C18, $00007F63, $00003C0C, $00004060, $00003C30, $00000000, $FFFF0000 '0x58 long $00000000, $00006E33, $00003B66, $00003C66, $00006E33, $00003C66, $00001E0C, $1E33303E '0x60 long $00006766, $00007E18, $3C666660, $00006766, $00007E18, $00006B6B, $00006666, $00003C66 '0x68 long $0F063E66, $78303E33, $00000F06, $00003C66, $0000386C, $00006E33, $0000183C, $00003636 '0x70 long $00006336, $1C30607C, $00007E46, $00007018, $00001818, $00000E18, $00000000, $0000007E '0x78 ' 0 1 2 3 4 5 6 7 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x80 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x88 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x90 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0x98 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00003E66 '0xA0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xA8 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000404, $00000000, $00000000 '0xB0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xB8 long $00000000, $00000000, $00000000, $00000000, $00006666, $00000000, $00000000, $00000000 '0xC0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xC8 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00001C36, $00000000 '0xD0 long $00000000, $00000000, $00000000, $00000000, $00003C66, $00000000, $00000000, $00063666 '0xD8 long $00000000, $00000000, $00000000, $00000000, $00006E33, $00000000, $00000000, $00000000 '0xE0 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00000000 '0xE8 long $00000000, $00000000, $00000000, $00000000, $00000000, $00000000, $00003C66, $00000000 '0xF0 long $00000000, $00000000, $00000000, $00000000, $00006E33, $00000000, $00000000, $00000000 '0xF8 ' 0 1 2 3 4 5 6 7
Hier exemplarisch der Zeichenaufbau für ein „ä“
Bit 8 7 6 5 4 3 2 1 Z1 . . . . . . . . 00 00 33 33 00 Z2 X X . . X X . . 33 Z3 X X . . X X . . 33 Z4 . . . . . . . . 00 Z5 . X X X X . . . 1E 33 3E 30 1E Z6 . . . . X X . . 30 Z7 . X X X X X . . 3E Z8 X X . . X X . . 33 Z9 X X . . X X . . 33 00 00 6E 33 Z10 . X X X . X X . 6E Z11 . . . . . . . . 00 Z12 . . . . . . . . 00
