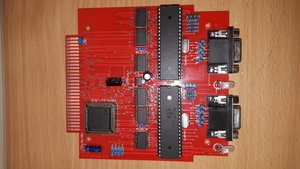

HIVE-Project

Code: Alles auswählen

CON
  vgrp     = 2                                          ' video pin group
  vpin     = %%333_0                                    ' video pin mask
  video    = (vgrp << 9 | vpin) << 21

...

PUB main : n | x
      link{0} := video | @scrn{0}
      link[1] := @attr{0}
      driver.start(-1, @link{0})

Code: Alles auswählen

                movi    ctrb, #%0_11111_000     ' LOGIC always (loader support)
                movi    ctra, #%0_00001_111     ' PLL, VCO/1
                movi    frqa, #%0001_00000      ' 5MHz * 16/1 = 80MHz
                movs    frqa, #res_x*3/4        ' |
                movs    frqa, #0                ' insert res_x*3 into phsa

                mov     vscl, #1                ' reload as fast as possible
                mov     zwei, scrn              ' vgrp:[!Z]:vpin:[!Z]:scrn = 2:1:8:5:16 (%%)
                shr     zwei, #5+16             ' |
                andn    zwei, #%%000_3          ' |
                or      vcfg_norm, zwei         ' | group + %%RGB_0
                shr     zwei, #9                ' |
                movd    vcfg_sync, zwei         ' | group + %%000_3
                mov     vcfg, vcfg_sync         ' VGA, 2 colour mode

                waitcnt temp, #0                ' PLL settled, frame counter flushed

                ror     vcfg, #1                ' freeze video h/w
                mov     vscl, phsa              ' transfer user value
                rol     vcfg, #1                ' unfreeze
                waitpne $, #0                   ' get some distance
                waitvid zero, #0                ' latch user value

                mov     temp, vcfg_norm         ' |
                or      temp, vcfg_sync         ' |
                and     mask, temp              ' transfer vpin

                mov     temp, vcfg              ' |
                shr     temp, #9                ' extract vgrp
                shl     temp, #3                ' 0..3 >> 0..24
                shl     mask, temp              ' finalise mask

                max     dira, mask              ' drive outputs
                mov     $000, pal0              ' restore colour entry 0

...

vcfg_norm       long    %0_01_0_00_000 << 23
vcfg_sync       long    %0_01_0_00_000 << 23 | %00000011
